iCubeSmart 3D LED Cube DIY Electronics Kit 8x8x8 - Soldering Project and Learning Kit (3D8S-MULTI)

iCubeSmart 3D LED Cube DIY Electronics Kit 8x8x8 - Soldering Project and Learning Kit (3D8S-MULTI)

$73.32 USD
$73.32 USD
Shipping calculated at checkout.

About This

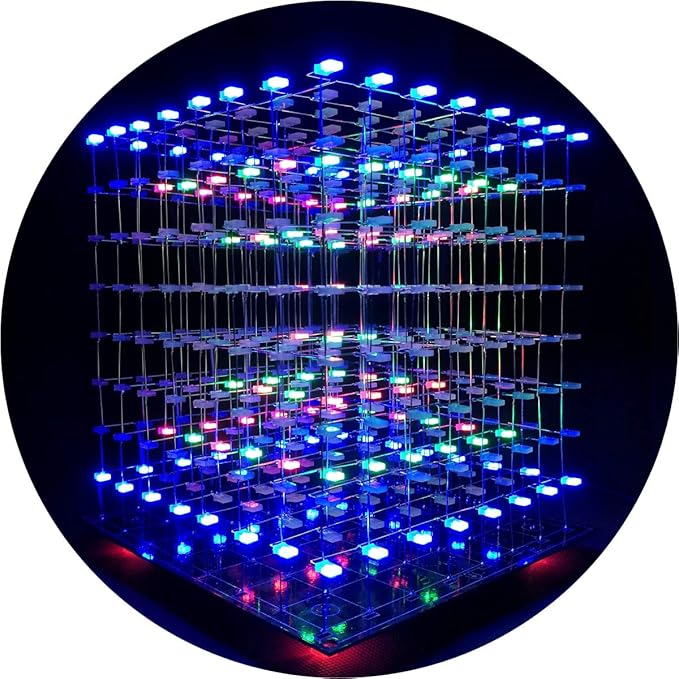

  • [LED CUBE KIT] This is a DIY welding package for 3D cube light, a 3D matrix made up of 512 red, green and blue square LED lamps, which can display a lot of colorful dynamic lighting shapes. It is suitable for students' manual electronic manufacturing courses and welding exercises. Meanwhile, it is also a pretty innovative and meaningful small gift. The size of the finished product after welding of this package is about 7.08*7.28*7.88inch, and the distance between the lamps is 0.9inch.

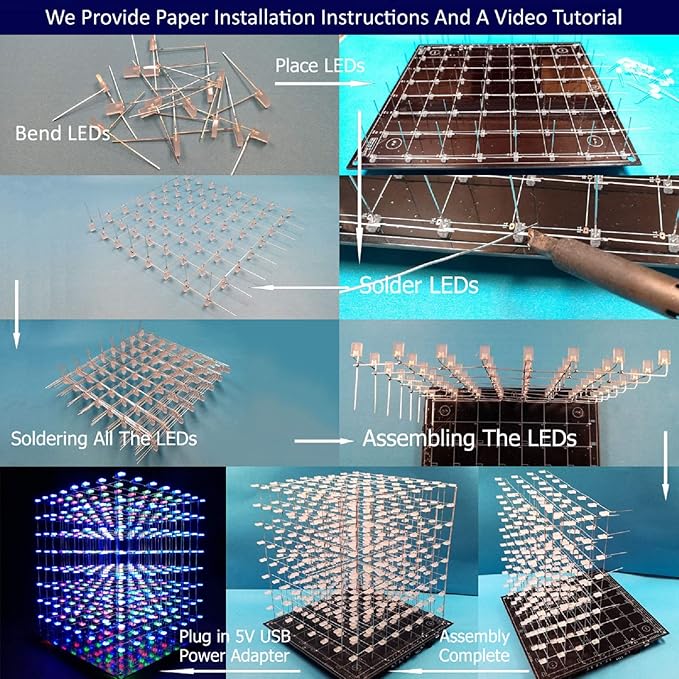

  • [SOLDERING KIT] The PCB main board in this package has been well soldered and tested, and users need to solder the LED lamp themselves, users are required to have a simple electronic technology foundation and soldering ability, so it is not suitable for children under 12+ years old. There are 64 square holes on the main board to fix the LED and make welding easier. We provide paper welding instructions. Users can also download installation instructions on Google network disk.

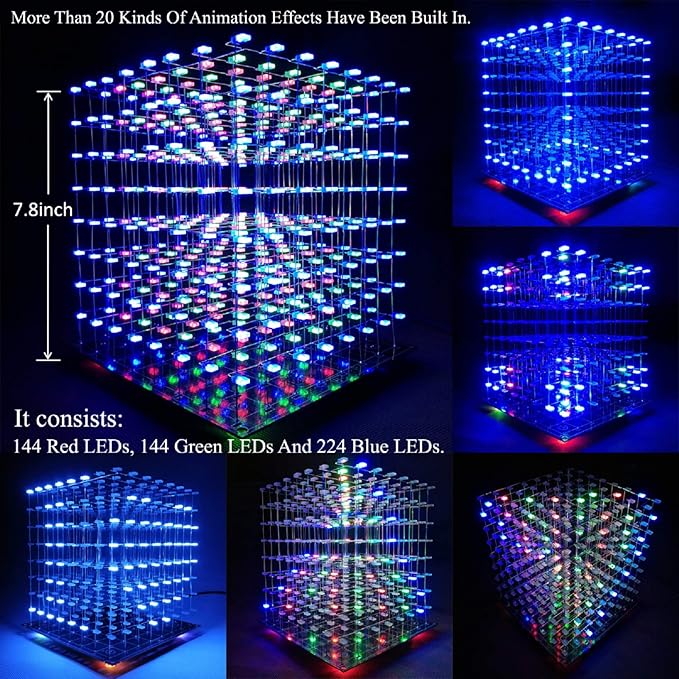

  • [EFFECTS CAN MODIFIED] More than 20 kinds of brilliant animation effects have been built into the main board of this cube. Users can display the animation after welding and plugging in the USB power supply. Users can also modify the animation displayed through the 3D software provided by us. Our 3D software can directly generate a HEX burning file, and then download the HEX file to the light cube to run.

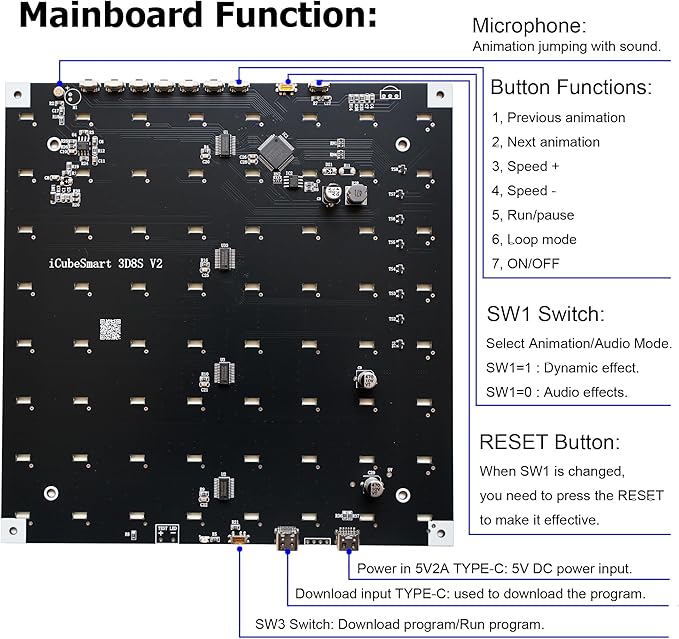

  • [MAIN BOARD FUNCTION] The size of the main board PCB is 18*18.5cm; the main board is powered by TYPE-C 5V USB; there are 8 keys on the main board to switch animation modes.
  • [AUDIO SPECTRUM MODE]There is a microphone on the motherboard to sense sound, and the audio spectrum mode can be switched by a switch on the motherboard.

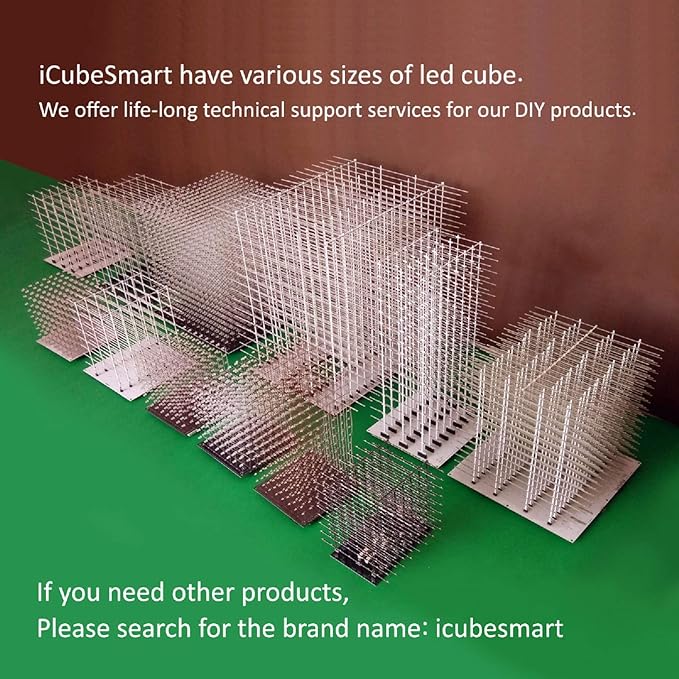

  • [PROFESSIONAL SERVICES] iCubeSmart has been devoted to the design and production of light cube for 15 years. We have designed various sizes of led cube. If you receive the product and do not know how to make it, or if there are fewer components for any reason, or if you need our help to modify the displayed animation, you can send us an email for any questions. We offer life-long technical support services for our DIY products.

Overview

  • Brand : iCubeSmart
  • Age Range (Description) : Adult
  • Color : multicolor
  • Theme : Vehicle
  • Item dimensions L x W x H : 8.46 x 8.27 x 1.97 inches
